Description

Overview
Basic Info.
Model NO. HXS-1536
Material Carbon Steel
Material Feature as Per Model
Certification ISO9001:2008, ISO9001:2000, CE
Energy Saving Energy Saving
Warranty 1 Year
Color Multi Color
Customized Customized
Condition New
After-sales Service Support
Cleaning System Bouncing Ball
Application Powder/Granule
Video Outgoing-Inspection Provided
Machinery Test Report Provided
Capacity by Model
Function Screening\Separation\Sorting\Sieving
Layer(S) 1-9 Layers
Mesh Size 2~500 Mesh
Advantage High Precision and Large Output
Product Name Gyratory Square Vibrating Sieve
Transport Package Wooden Box
Specification Vibrating Screen
Trademark Gaofu
Origin Henan, China
Production Capacity 10000set/Year
Packaging & Delivery
Package Size 260.00cm * 200.00cm * 230.00cm Package Gross Weight 4500.000kg
Product Description

Product Description

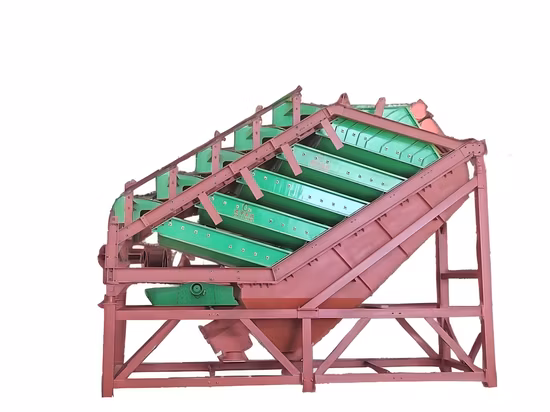

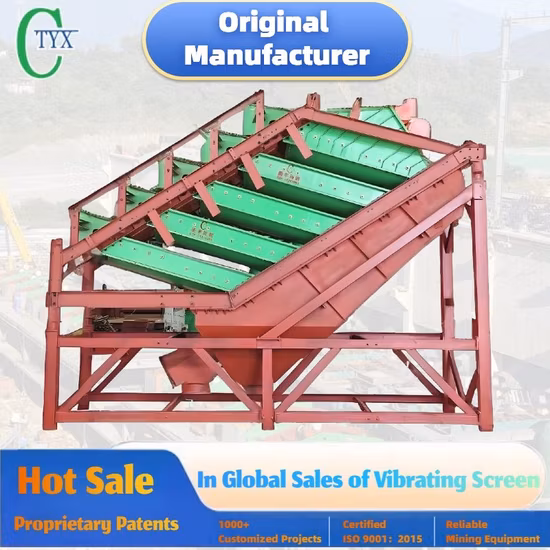

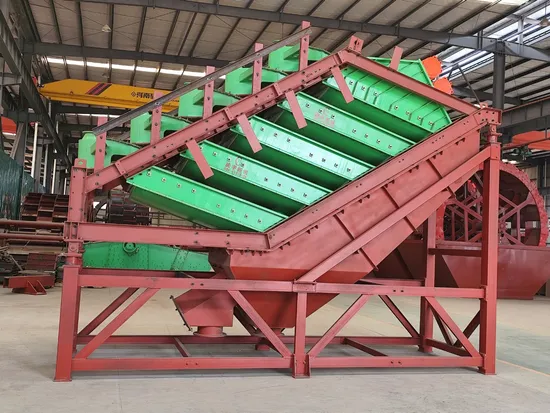

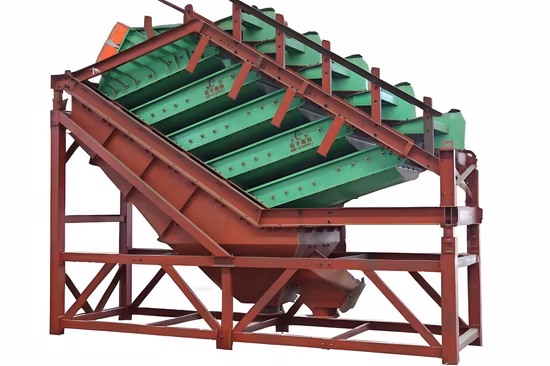

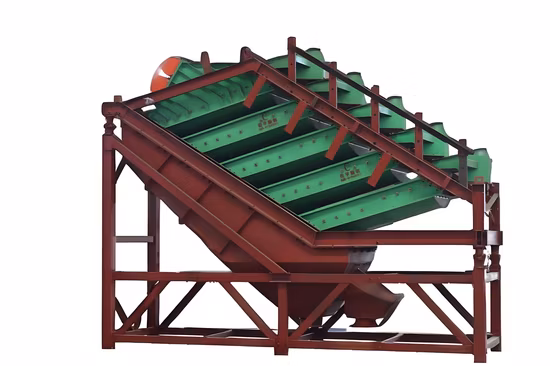

Square Shaker

Square swinging screen, also known as rectangular swinging screen, is a high-efficiency screening equipment with high precision and large output. It has better self-cleaning effect, high screen utilization rate, long life and good sealing effect.
The square swinging screen is widely used in chemical industry and new materials, metallurgy, metal powder, mineral powder, food, salt, sugar, abrasive, feed and other industries. Through the square swinging vibrating screen, the whirling motion of the exciter is transmitted to the screen surface, so that the materials are quickly dispersed in the front of the screen machine, so as to achieve the purpose of high-efficiency screening.

Product advantages
The square swinging screen adopts many new processes and standardized design schemes, which can be combined with production conditions and different customer needs to achieve a variety of combination modes. At the same time, the design concept also considers the convenience and safety of transportation, and the overall dimensions of the equipment are designed in combination with the transportation vehicles. Both the dust cover and the force transmission plate of the exciter are stamped and formed by a large press at one time, which increases the strength and reduces the weight of the equipment. The plate is made of cold-rolled plate, which is more unique in mechanical design and achieves the design concept of high efficiency and energy saving.
Scope of application
Building materials, mineral processing, metallurgy, chemical industry, abrasives, food and other industries
Applicable materials
Dry powder mortar, machine-made sand, natural sand, quartz sand, perlite, dolomite, calcite, potassium feldspar and other stone powder and mineral powder; metallurgy, metal powder, mineral powder, food, sugar, salt, abrasive, Grading of feed and other industries.

Product Features

Large screening capacity, unique multi-layer grading design, one machine is divided into two groups, one machine can be used for multiple machines, and the output is doubled.
Fully enclosed structure, no dust flying, small vibration and low noise of the sieve machine, which meets the requirements of environmental protection.
Flexible screening, the acceleration is 4-5 times lower than ordinary vibrating screens, and the service life is improved, thereby reducing maintenance costs.
It is more convenient to change the screen, simple to operate, firm and reliable.
Large-scale electrostatic spraying process, the equipment is more beautiful, wear-resistant and anti-rust.
Rotary screening: Two layers of screens with the same aperture allow the materials that have been screened once to be screened again to achieve higher screening accuracy.
Rotary reverse sieving: material sieving is sieved from fine→medium fine→medium→coarse, and the coarse material plays a certain role in cleaning the mesh.

Product Parameters

Working Principle

After the screen machine is started, the shaking body of the screen machine, that is, the screen box, reciprocates back and forth under the action of inertial force, and the screen box drives the screen surface to shake periodically, so that the materials on the screen surface make directional jumping motion together with the screen box, During this period, the material smaller than the aperture of the screen surface falls to the lower layer through the sieve hole and becomes the undersieve, and the material larger than the aperture of the screen surface is discharged from the discharge port after continuous tumbling and jumping motion, thus completing the screening work.

ModelScreen size (m)Screening area(m²)Screen inclination (°)Number of screenlayers (s)Power(kW)Allowable number of rotationsScreen boxstroke (mm)
HXS-15361.5m*3.5m5.255.43±31~105.5180-26060-25
HXS-18361.8m*3.5m6.35.43±35.5180-26060-25
HXS-20402.0m*4.0m85.43±37.5180-26060-25

Mining Industry Multi-Layer Heavy Large-Capacity Gyratory Vibrating Sieve Square Sieving Sand Equipment

Packaging & Shipping


Mining Industry Multi-Layer Heavy Large-Capacity Gyratory Vibrating Sieve Square Sieving Sand Equipment

Mining Industry Multi-Layer Heavy Large-Capacity Gyratory Vibrating Sieve Square Sieving Sand Equipment

Mining Industry Multi-Layer Heavy Large-Capacity Gyratory Vibrating Sieve Square Sieving Sand Equipment

Recommended Featured

Certifications

Mining Industry Multi-Layer Heavy Large-Capacity Gyratory Vibrating Sieve Square Sieving Sand Equipment

Company Profile


Xinxiang Gaofu Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers. Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation. our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions. Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Machinery Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2017! Please visit our website: www.gaoful.com. Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
FAQ

1. who are we?

We are based in Henan, China, start from 2000,sell to Southeast Asia(40.00%),Domestic Market(27.00%),South America(10.00%),Eastern Europe(8.00%),Oceania(3.00%),North America(2.00%),Western Europe(2.00%),Africa(2.00%),South Asia(1.00%),Eastern Asia(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Mid East(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Vibrating Screen Equipment, Crusher, Conveying Equipment, Mixer, Food Feeding And Screening System
4. why should you buy from us not from other suppliers?
Gaofu company founded in 1982, 20 years screening experience, the company covers an area of 50800 square meters.we posses the independent management right of importing and exporting, our products are spread all over the country, sold in faraway market area
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese

Contact Us

Tell me the following questions, Then I can send you accurate quotation soon, including additional discount!Your email addressand telephone will not be shared or published!The proper selection of the vibrating screen depends on the material, mesh size,output required, method of input,abrasiveness of the material etc: 1. Screening product : _____2. Moisture:_____%3. Capacity:________kg/ hour4. Screen layer:_______5. Screen mesh size:______ mesh . ______ mesh. ______ mesh6. Voltage:______V,Frequency:______HZ, 3 phase7. SS304/316L stainless steel or Q235A carbon steel?
