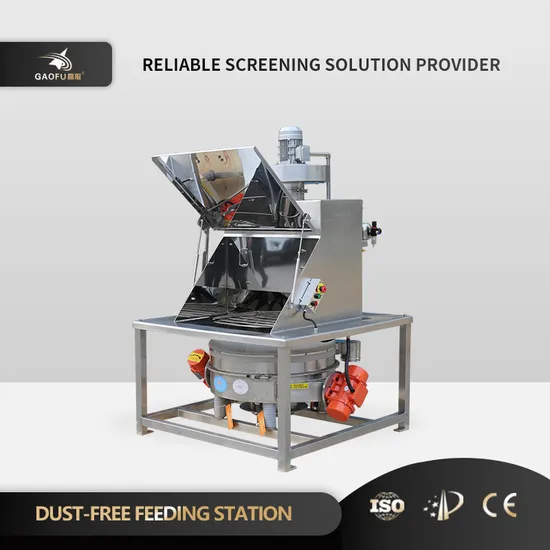

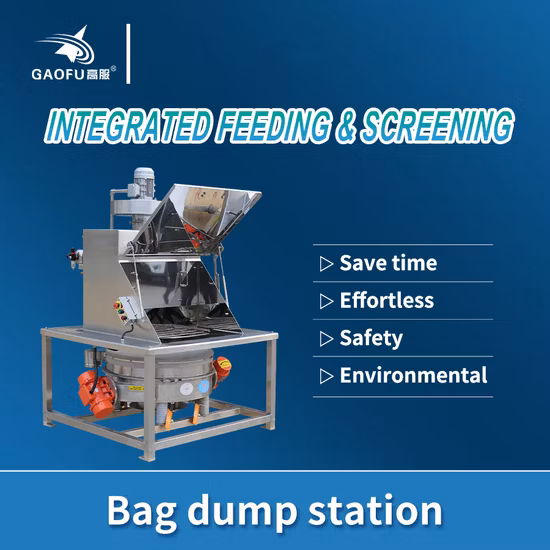

Automatic /Vacuum/Screw/Hopper/Feeder/Feeding Machine/Dust Free Feed Station for Pepper, Coffee, Tea, Protein, Milk, Sugar, Salt, Yeast

Basic Info.

Model NO.	ZSL
Overall Dimension	Customized Vacuum Feeder
Motor Power(kw)	Customized 3-15kw
Capacity(t/h)	Customized 500-5000kg/H
Appearance	Closed-Type
Machine Material	Stainless Steel SUS304/SUS316L
After-sales Service	24 Hour Service
Application	Food, Pharma, Flavoring, Fertilizer Powder/Granule
Delivery Time	30 Work Days
Transport Package	Standard Wooden Case
Specification	ZSL
Trademark	Yuzhou
Origin	China
HS Code	842119
Production Capacity	100---2000kg

Product Description

Automatic /Vacuum/Screw/Hopper/Feeder/Feeding Machine/Dust Free Feed Station for Pepper,Coffee,Tea,Protein,Milk,Sugar,Salt,Yeast
Description
ZKS vacuum feeding machine can automatically convey kinds of materials to the hoppers of packaging machine, injection molding machine, pulverizer, and so on. This vacuum conveying machine can also directly convey mixed material to the mixing machine (like V type mixing machine, two-dimensional mixing machine) to reduce working intensity and solve the problem of dust overflowing while feeding material. In addition to vacuum feeding machine, we also supply other conveying equipment, such as bucket elevator, screw feeding machine, hopper conveyor equipment and belt conveyor.

Application
ZKS vacuum conveying machine is extensively applied in pharmaceutical industry, food industry, chemical industry and agriculture. Vacuum feeding machine can be used to convey bulk pharmaceutical chemicals, powder material, granular material, mixed material, tablets, afterbirth pills, capsules, additives, raw materials, candy, afterbirth sugar pill, cocoa powder, gourmet powder, crystal, etc. This vacuum conveying machine can also be used to convey chemical raw materials, industrial raw materials, dyes, agricultural bulk material, etc.

Automatic /Vacuum/Screw/Hopper/Feeder/Feeding Machine/Dust Free Feed Station for Pepper, Coffee, Tea, Protein, Milk, Sugar, Salt, Yeast

Features
1. The material suction nozzle entrance and the whole system of ZKS vacuum feeding machine are in a certain vacuum state. Powder or particle material and outside air can be suctioned into the material nozzle and form material air flow. Through the suction material tube, it reaches the hopper where air and material will be separated. After separation, material enters the material receiving equipment.
2. This vacuum conveying machine is installed with compressed air reverse blowing device. While putting material, compressed air pulse reversely blows the filter and fetches down the powder absorbed on the surface of filter, thus ensures material suction is in normal running.

Parameters of ZKS Vacuum Feeding Machine

Model	Motor Power (kW)	Conveying Capacity (kg/h)
ZKS-1	1.5	400-600
ZKS-2	2.2	600-1000
ZKS-3	3	1200-1500
ZKS-4	5.5	1500-2000
ZKS-5	7.5	2000-2500
ZKS-6	11	2500-3500
ZKS-7	15	3500-5000
