High Performance 3 HP Electric Vibrating Motor for Tables

High Performance 3 HP Electric Vibrating Motor for Tables

Overview Package Size40.00cm * 35.00cm * 30.00cm Package Gross Weight40.000kg high quality 3 hp vibrating electric motor
SHARE
Send inquiry

Description

  • Overview
  • Product Description
  • Working Principle
  • Product Parameters
  • Detailed Photos
  • Main Applications
  • FAQ
  • Related Products
  • Feedback from customer
Overview
Basic Info.
Model NO. YZU20-6
Number of Stator Three-Phase
Species YS Series Three-Phase
Rotor Structure Winding Type
Casing Protection Closed Type
Number of Poles 4
Starting Mode Direct on-line Starting
Certification ISO9001, CCC, CE
Brand Suntech
Voltage 110V-480V 50Hz/60Hz
Protective Grade IP55
Current 5.6A
Material Carbon Steel
Noise 980rpm
Insulation Class F
Transport Package Standard Plywooden Box
Specification 0.25kw-11kw
Trademark SUNTECH
Origin China
HS Code 8501510090
Production Capacity 2000/Year
Packaging & Delivery
Package Size40.00cm * 35.00cm * 30.00cm Package Gross Weight40.000kg
Product Description

high quality 3 hp vibrating electric motor for vibrating table is an excitation source that combines power source and vibration source for the vibratory related equipment, such as, vibrating screen, vibrating table, concret vibrator, vibrating crusher, vibrating elevator etc.
It has advantages of high utilization rate of excitation force, low energy consumption, low noise and long service life. The excitation force of the vibration motor can be adjusted infinitely, and the usage is convenient.
It can operate safely in specific hazardous environments. The motor shell protection grade is IP55/IP65, the insulation grade is F grade, and the explosion-proof mark is Ex d IIB T4 Gb/Ex tD A21 IP65 T130ºC.

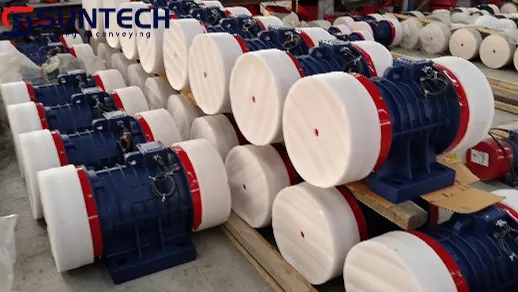

High Performance 3 HP Electric Vibrating Motor for Tables

There is a set of adjustable eccentric blocks installed at both ends of the rotor shaft on the vibration motor, the vibrating exciting force is generated by the high speed rotation of the shaft and eccentric blocks.
The rotar shaft is with high precision, and the inner is wound by the full copper coil, Its shell is manufactured by once casting completion,which increase its strength.Furthermore,we use all steel mould casting,ensure the nice appearance.Outer guard shield change to use one-off drawing complete,it makes the better sealing property of the vibrating motor.

High Performance 3 HP Electric Vibrating Motor for Tables

High Performance 3 HP Electric Vibrating Motor for Tables

vibrating motor operating conditions
1. Ambient temperature: -20ºC~40ºC
2. Altitude: <1000m
3. Connection method: Y
4. Insulation class: F class
5. Protection class: IP65
6. Working method: continuous (S1)
7. Installation method : any direction

High Performance 3 HP Electric Vibrating Motor for Tables


High Performance 3 HP Electric Vibrating Motor for Tables








We have rich stock can fast delivery after you order

It has a wide application on the following vibrating related equipment
1.Vibrating screen:linear vibrating screen,mining vibrating screen,dewater vibrating screen.
2.Conveying equipment :vibration conveyor ,conveyor drying vibration ,vibration vertical lifting convey
3.Feeding machine:vibrating feeder,vibrating hopper,vibration filling machine .
4.Other vibration equipment :vibrating table.

Machine Features: 1. Long working life,only maintenance the bearings on time.

2. Becasue use smooth rotation to vibration,lead to low noise.

3. Light weight,small volume.

4. A variety of vibration forms can be combined by a multi-unit to complete various operation requirements.

5. Fully closed structure,it can work at dust condition without No explosion-proof requirement.

6. The design of vibrating motor can be adjustable,to apply to a special environment.

If you are interested in our high quanlity vibrating motor you can offer these information as follows.

Q1: How to choose the suitable electric motor vibrator?
A: 1. The type of motor:horizontal or vertical vibrating motor.Or you can tell me what equipment you use it for,we can recommand for you.
2. The power and voltage .
3. The speed and force.

Q2: Can the motor voltage and machine color be customized?
A: Yes,we can customized the voltage and colors according to your reference

Q3: How long is the warranty period for your equipment?
A: Our machine has 13 months guarantee. During the guarantee period, if any quality problems occur, we will provide the relatedspare parts(consumable spare parts not included freight free of charge.

Q4: What is the price term and payment method?
A: We can quote EXW, FOB, CIF and CFR price. You can pay us by T/T, L/C , Visa.


high quality 3 hp vibrating electric motor for vibrating table

Product Description

Working Principle

Product Parameters

Model Rated Excitation Force (KN) Rated Rotating Speed (rpm) Rated Power (KW) Electric Current (A) Voltage (V) Installation Size Dimensions Weight (kgs)
A B H K AB BB HB G L
YZU-1.5-2 1.5 2860 0.15 0.5 380 130 80 80 12 170 140 154 16 360 13.5
YZU2-2 2 2860 0.18 0.54 380 130 80 80 12 170 140 154 16 260 14
YZU2.5-2 2.5 2860 0.2 0.55 380 130 80 80 12 170 140 154 16 260 19
YZU3-2 3 2860 0.25 0.6 380 150 90 90 14 185 150 172 18 280 20
YZU5-2 5 2860 0.37 0.9 380 150 90 90 14 185 150 172 18 280 21
YZU8-2 8 2860 0.75 1.75 380 180 110 112 18 220 180 230 18 340 36
YZU10-2 10 2860 0.75 1.75 380 180 110 112 18 220 180 230 18 340 37
YZU15-2 15 2860 1.1 2.3 380 220 140 120 22 270 225 260 25 415 47
YZU20-2 20 2860 1.5 3.1 380 260 150 140 26 320 280 310 28 445 80
YZU1.5-4 15 1440 0.15 0.5 380 130 80 80 12 170 140 154 16 260 15
YZU2-4 2 1440 0.15 0.5 380 130 80 80 12 170 140 154 16 260 15.5
YZU2.5-4 2.5 1440 0.18 0.6 380 150 90 90 14 185 150 172 18 280 21
YZU3-4 3 1440 0.18 0.6 380 150 90 90 14 185 150 172 18 280 23
YZU5-4 5 1440 0.25 0.75 380 180 110 112 18 220 180 230 25 340 37
YZU8-4 8 1440 0.55 1.5 380 220 140 120 22 265 225 266 28 415 49
YZU10-4 10 1440 0.55 1.5 380 220 140 120 22 265 225 266 28 415 49
YZU15-4 15 1440 0.75 1.9 380 260 150 140 26 310 245 303 28 450 77
YZU20-4 20 1440 0.75 1.9 380 260 150 140 26 310 245 303 28 450 82
YZU30-4 30 1440 1.5 3.6 380 310 170 160 33 380 285 356 30 536 130
YZU50-4 50 1440 2.2 5.1 380 350 220 190 39 440 350 410 35 608 180
YZU3-6 3 930 0.25 0.84 380 180 110 112 18 220 180 220 18 340 39
YZU5-6 5 930 0.37 1.2 380 220 140 120 22 265 225 266 25 415 50
YZU8-6 8 930 0.75 2.2 380 260 150 140 26 310 245 305 28 450 80
YZU10-6 10 930 0.75 2.2 380 260 150 140 26 310 245 305 28 450 83
YZU15-6 15 930 1.1 3.1 380 310 170 160 33 380 285 356 30 536 136
YZU20-6 20 930 1.5 4.0 380 310 170 160 33 380 285 356 35 536 140
YZU30-6 30 930 2.2 5.6 380 350 220 190 39 440 350 410 30 608 190
YZU50-6 50 930 3.7 8.4 380 380 250 220 33(45) 446 340 425 40 615 230
YZU75-6 75 930 5.5 11 380 440 280 240 36(52) 550 550 520 40 790 435
YZU100-6 100 930 7.5 15 380 440 140 260 6-45 640 690 590 40 890 515
YZU140-6 140 930 10 22 380 480 140 280 8-45 710 77 640 50 960 556
