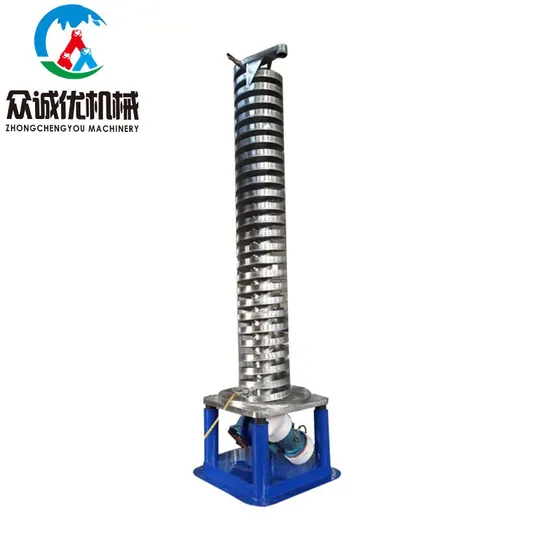

High Efficient Spiral Vertical Conveyor Vertical Vibration Conveying Equipment
Description
- Overview
- Product Description
- Detailed Photos
- Product Parameters
- Application industry
- Packaging & Shipping
- Certifications
- FAQ
Basic Info.
| Model NO. | ZCT-800 |
| Structure | Conveyor System |
| Material | Stainless Steel |
| Material Feature | Heat Resistant, Fire Resistant |
| Application | Chemical Industry, Grain Transport, Mining Transport, Power Plant |
| Condition | New |
| Voltage | 110V / 220V / 380V / as Client′s Demand |
| Function | Transferring Material |
| Usage | Material Conveying |
| Advantage | High Efficiency Low Cost |
| Motor | 2 Vibrating Motors |
| Transport Package | Wooden Case |
| Trademark | Zhongchengyou |
| Origin | China |
| Production Capacity | 100 Sets Per Month |
Product Description
Vibrating spiral conveyor is a new type of vertical vibration conveying equipment, which can transport all granular, blocky and powdery solid materials (with low viscosity). It is divided into open and closed structures, and can be specially designed according to user requirements.
Please tell me your production requirements, and we will provide you with the price soon.
1) What material do you want to convey? What is the material size?
2) Bulk density:_____ Kg/m3 or____ g/cm3. If it is convenient, please attach your raw material photo.
3) What is the height you want to convey?
4) What is your output capacity per hour?
5) Does the machine need stainless steel 304/316 or carbon steel?
6) Do you need to add a hopper? If necessary, please tell me the hopper capacity you need_____ L?
7) Local voltage (V), frequency (Hz), phase (P)?
Product Description
Detailed Photos
Product Parameters
| Model | Conveying capacity (t/h) | Diameter (mm) | Width (mm) | Height (m) | Vibration times (min) | Double amplitude (mm) | Power (kw) | Weight (kg) |
| ZCT-300 | ~1.0 | 300 | 77 | ≤2.0 | 960 | 6~7 | 2*0.4 | 680 |
| ZCT-500 | ~2.0 | 500 | 140 | ≤3.0 | 6~8 | 2*0.75 | 1010 | |
| ZCT-550 | ~3.0 | 550 | 152 | ≤3.5 | 6~8 | 2*1.5 | 1190 | |
| ZCT-600 | ~3.0 | 600 | 163 | ≤4.0 | 6~7 | 2*1.5 | 1320 | |
| ZCT-800 | ~4.0 | 800 | 224 | ≤4.5 | 6~8 | 2*2.2 | 1590 | |
| ZCT-850 | ~4.0 | 850 | 224 | ≤5.0 | 6~9 | 2*2.2 | 1750 | |
| ZCT-900 | ~3.5 | 900 | 185 | ≤6.0 | 6~9 | 2*3.0 | 2100 |
