Educational Technology Equipment PLC Controlled Pneumatic Conveying System Trainer

Basic Info.

Model NO.	GTPT-0001
Customized	Customized
Certification	ISO9001, ISO45001/ISO14001
Dimension	15006501710mm
Working Power	AC220V, 50Hz
Transport Package	Sea Worth Package
Specification	about 150kg
Trademark	GTEE
Origin	Guangzhou, China
Production Capacity	100sets/Month

Product Description

Educational technology equipment PLC controlled pneumatic conveying system trainerPN: GTPT-0001

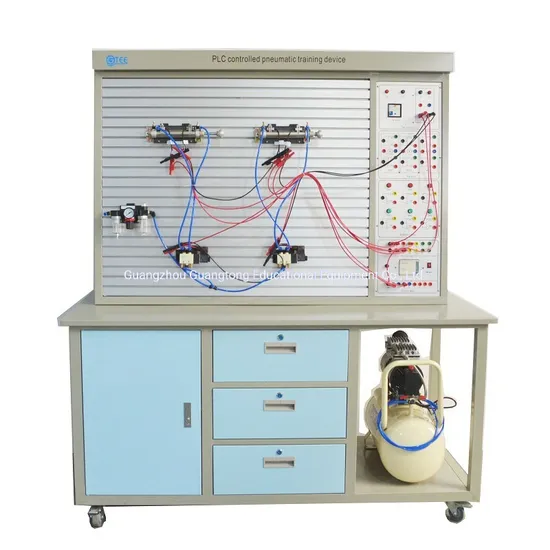

Picture for reference:Technical parameter
Dimension: 1500mm × 650mm × 1710mm
Power supply: Single phase AC220V, 50Hz
Weight: about 150kg

Product description
This device can be used as the comprehensive test-bench of the mechanical, electrical and
pneumatic transmission. Students can get more accurate understanding of the structure of pneumatic components, pneumatic control loop theory and design methods through operation.

Product composition
Training courses

The reversing loop of single acting cylinder
The reversing loop of double acting cylinder
Single acting cylinder speed control loop
Single phase speed control loop of double acting cylinder
Double acting cylinder speed control loop
Speed switching loop
Buffer loop
Secondary pressure control loop
Counting loop
Delay loop
Interlocking loop
Single cylinder and single reciprocating control loop
Single cylinder continuous reciprocating action loop
Sequential action loop of a straight cylinder and a rotating cylinder
Multi cylinder sequential working loop
Double cylinder synchronous action loop
Four cylinder linkage loop
Unloading loop
The application loop of the "OR" gate shuttle valve
The application loop of the fast exhaust valve
High and low voltage switch over control loop
Overloading protection loop
