Overview

Basic Info.

Model NO.	YBS1000/YBS1200/YBS1600/YBS2000/YBS2600
Transmission Structure	Vibrating Screen
Usage	Mine Shaker, Lightweight Fine Shaker
Works	Vibration Motor
Object	Food Processing/Chemical/Mining/Ore
Shaft Number	None
Running Track	Circular Vibrating Screen
Supporting Device	Rubber Spring
Warranty	1 Year
Customized	Customized
Condition	New
After-sales Service	1 Year
Diameter	1000/1200/1600/2000/2200/2600mm
Layer(S)	1-5 Layers
Mesh Size	2-500mesh
Cleaning System	Bouncing Ball/Ultrasonic Cleaning System
Capacity	500kg-10tons/Hour
Material	Stainless Steel 304/316L/Carbon Steel
Voltage	380V, or Customized
Certificate	CE Certification
Transport Package	Standard Export Wooden Box
Specification	1000-2600mm
Trademark	KARP
Origin	Xinxiang City, Henan Province, China
HS Code	8479820090
Production Capacity	200 Set/Sets Per Month

Packaging & Delivery

Package Size40.00cm * 40.00cm * 40.00cm Package Gross Weight40.000kg

Product Description

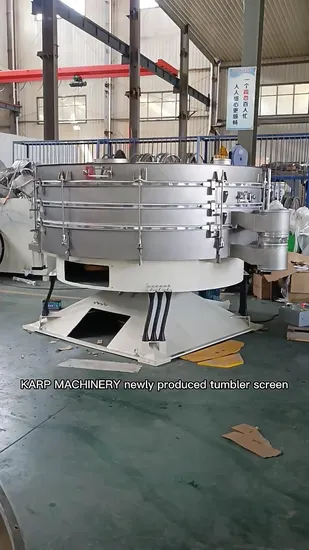

CE certificate Multi-layer circular tumbler screen for monosodium glutamate vibrating sieve

* Control material flow to feed uniformly. * Improve product screening accuracy. * Prolong the service life of screen.

03
Lift Cylinder * Helping to raise the sieve frame
* Easy and convenient to replace and clean the screen.

04 Screen Mesh * The main materials of screen mesh are SS304, SS316. Food grade net glue. * Corrosion resistance, High temperature resistance, No rust, Clean and hygienic * The screen mesh can be up to 500 mesh, with up to 5 screen decks.

05 ABB Motor

* International well-known brand motor.* Long service life.

- High efficiency. Mimics manual screening with spiral motion and precise contact. Accuracy over 95%.

- Protect materials. Soft screening preserves particle structure and avoids static electricity. Good for flammable and explosive materials.- Long life. Low vertical acceleration and stainless steel prevent screen damage. Longer screen and part life.- Clean and hygienic. Bouncing ball or ultrasonic system cleans mesh surface. Fully enclosed operation for environmental protection.

Product Show

Surface treatment: outside polishing and sand-blasting
We have SS304, SS316 and Carbon Steel materials for your choice

Bouncing balls cleaning system for fine powder

Ultrasonic cleaning system for fine and super fine powder

Product Parameters

Model	Diameter (mm)	Layer	Power (kW)	Sieving area (m2)	Cleaning system
YBS1000	1040	1-5	1.5	0.71	Bouncing ball/ Ultrasonic cleaning system
YBS1200	1250		2.2	1.11
YBS1600	1580		2.2/4	1.83
YBS2000	1880		2.2/4	2.62
YBS2600	2650		5.5	5.31

Application

Application details

1. Chemical industry: resin, paint, industrial powder, cosmetics, herbal powder, plastic, PVC powder, etc.

2. Food industry: sugar powder, starch, salt, rice powder, milk powder, soybean milk, egg powder, soy sauce, juice, coffee bean, etc.

3. Metals and metallurgical mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.

4. 3D Printing materials: titanium alloy powder, aluminium alloy powder, stainless steel powder, iron base alloy, nickel base alloy, titanium powder, copper powder, aluminum powder, molybdenum powder.

5. Lithium battery industry: battery cathode material, battery anode materials, artificial graphite, natural graphite, lithium iron phosphate, battery material powder, etc.

6. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon, etc.

Customer site

Packaging & Shipping

Packing for Tumbler Screen: Outside package: standard export wood box.

Inner package: stretch film for machine, accessories in carton. Optional shipping type: Support Express · Sea freight · Land freight · Air freight

Company Profile

FAQ

1. Can I customize my product?

Sure, we have our own R&D department to offer customization service for you.

2. How long is your production time?A set of equipment takes 15-20 working days, and more than 1 set takes about 20-25 working days.3. How long is your warranty?A 13-month warranty ensures you have no worries.4. What services can we provide?Accepted Delivery Terms: FOB, CFR, EXW; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union;

Each product undergoes strict quality control before shipping, so please rest assured.

If you are interested, please let us know the following information: 1. Material name: ________ 2. Moisture content: ________ 3. Layers: ________ 4. Mesh size: ________ 5. Capacity(kg/h): _______
