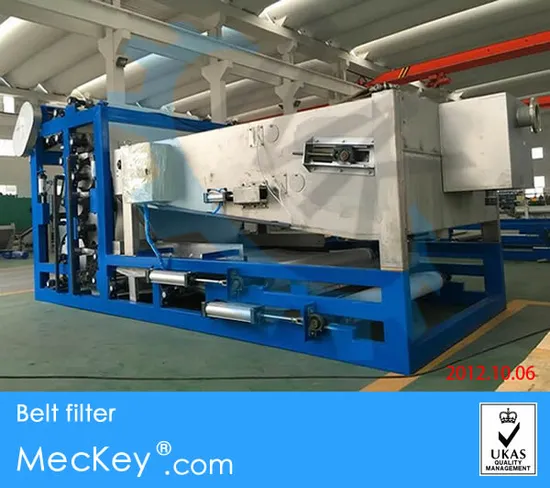

Advanced Belt Filter / Belt Filt Equipment

Basic Info.

Product Description

Automatic Dewatering Machine,

Plate-and-Frame Filter Press!!!

• Advanced structure design considering of machinery, electricity and hydraulic in one machine
• Easy operation, simple maintaining.
• All kinds of material of filtering plate are available such as plastic, rubber, enhanced polypropylene, stainless steel and cast iron.
• High efficiency, ideal equipment for processing suspension
• Following see the picture of the filter press and the filter plate:

Product Main Parts

It mainly consists of four parts: frame part, filtration part, hydraulic part and electricity part.

Frame part is the base of press filter, used to support filtration mechanism and connect other parts. It mainly consists of press plate, push stopping plate, oil tank and main beam. When working, the piston of oil tank push the press plate and tightly compress the filtration cloth between the press plate and push stopping plate so as to ensure the pressure adding filtration is workable.

Filtration part consists of a serial of filtration plate and cloth which array on the main beam and they form some filtration units.

When filtration gets started, suspense is pumped into every filtration unit. Under the function of filtration cloth, solid is left on the filtration cloth and forms filter cake, clean liquid will go through filtration cloth and is discharged through open tube and under tube. If needing wash, water can go into wash inlet and wash the filter cake; If needing to decrease the moisture of filter cake, compressed air can go into wash inlet to finish the process.

Hydraulic part is the dynamic force of the press filter. It mainly consists of the hydraulic station and oil tank.

Electricity part is the control center of the whole system.
